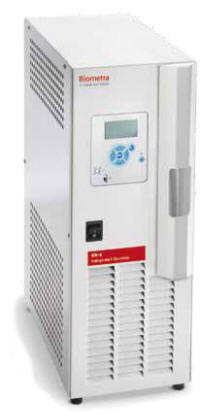

Biometra KH-6型低温循环仪(冷却循环仪)

Biometra Refrigerating Circulator KH-6

Biometra logo

KH-6型低温循环仪(冷却循环仪,Refrigerating Circulator KH-6)



KH-6的温度范围几乎覆盖了所有应用领域:

Refrigerating Circulator KH-6
  • 节省空间型设计
  • 微处理器控制
  • CFC free
Precise and constant temperature often is essential for a wide range of laboratory methods, e.g. Pulsed Field gel electrophoresis with the Rotaphor, native polyacrylamide gel electrophoresis (slabgels), agarose gel electrophoresis (Agarose gel systems), isoelectric focusing (2D gel electrophoresis) or DNA-sequencing (DNA-sequencer).

The new KH-6 is menu driven, microprocessor controlled and equipped with genuine digital electronics. The compact design is a result of modern SMD technology. The Real Temperature Adjustment system allows corrections between the actual temperature displayed and the temperature in an external system by an correction value "C".

The powerful pump (switchable flow rate, approx. 7.5 l/min. or 15 l/min.) ensures an excellent temperature uniformity throughout the bath and an efficient heat exchange with external objects. Thus, a high degree of temperature accuracy is attainable.

KH-6型低温循环仪的技术参数



产品名称

KH-6型低温循环仪
Working temperature range -10°C to +80°C
Fixed temperatures 5 (free selection)
Temperature accuracy +/- 0.1 K
Dispaly multifunction, digital
Heating capacity 2.000 W
Cooling capacity at 20° C 250 W
Max. flow rate 7.5 l / min. or 15 l / min.
Max. pump pressure 300 mbar
Bath volume (internal) 2.8 l
Overall dimensions (W x L x H) 232 mm x 487 mm x 620 mm
Unit weight 30 kg
Ambient temperature range 10°C to 40°C
Relative humidity (non condensing) max. 80% at 31°C
Power supply 230 V +/- 10%/50Hz
Total wattage consumption 2,395 VA

KH-6型低温循环仪的订货信息



产品编号

产品描述

043-500 Refrigerated Circulator KH-6 (230 V)  and manual
