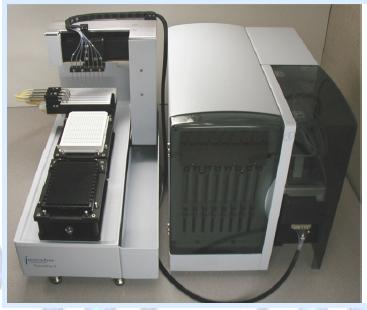

Nanodrop II
Using the same Nanodrop series fluidics
module as the Nanodrop I and ExtY, the Nanodrop II
is a complete solution for low volume, high-precision pipetting.
The system can be configured with one or two plate positions to
enable applications such as assay miniaturization, method
development, PCR reaction setup, and protein crystallography.
When a single plate nest is used, 4
individual tips can access any well of a standard SBS plate,
enabling complex method development and design. The Nanodrop II
aspirates and dispenses a broad range of liquids including DMSO
and features the Nanobuilder© software system that enables a
wide range of applications and data manipulation. Innovadyne’s
patented technology isolates the solenoid dispense actuators
from the sample path. This assures long life and easy, low-cost
maintenance.
FEATURES
- Non-contact and contact dispense
- Exceptional dynamic range (nanoliter to
milliliter)
- Aspirate and dispense with individual
channel articulation
- Sample transfer and bulk reagent additionon
the same platform
- Simple fluid path with no moving parts
- FEP, SS, sapphire wetted parts compatible
with commonly used solvents
- 96-, 384-, and 1536-well plate formats
- Deep-well and crystal plates supported
- Modular, raised, removable plate nests
enable flexible configuration
- Easy to program, easy to automate
- Simple cleaning and maintenance
