GRANT DataTaker data loggers

DataTaker DT8x系列工程勘察数据记录仪

(Datataker DT8x series Geotechnical data loggers)

Various remote connection options eg dial up modem

Supporting vibrating wire sensors the new dataTaker DT8xG GeoLogger is ideal for all geotechnical data logging applications. The dataTaker GeoLoggers have built-in vibrating wire support providing ideal data acquisition and monitoring solution for the engineer working in the geotechnical environment.

The dataTaker GeoLoggers can monitor a wide variety of geotechnical datalogging applications including slope stability, subsidence, dam wall monitoring, tunnel and mining excavation, ground water, tunnel wall monitoring and site assessment.

The DT80G and DT85G can be expanded simply by connecting dataTaker Channel Expansion Modules (CEM20) to provide 100 to 300 vibrating wire channels with thermistors.

The advanced new dataTaker DT8xG range of GeoLoggers are compatible with all major brands of geotechnical instrumentation including Slope Indicator, RST Instruments, Geokon, Soil Instruments, Roctest, AGI - Applied Geomechanics Inc.

• DT80G 5-15 unversal inputs
• DT85G 16-48 universal inputs
• Vibrating wire support
• Expandable Analogue channels using CEM20. DT80G up to 100 and DT85G up to 300 geotechnical channels
• USB memory for easy data and program transfer
• Flexible communications (USB, Ethernet and RS232)

Key Features

• Standalone data logger with link to a PC
• Dual channel isolation technology
• User definable allocation of memory size and mode
• Vibrating wire support
• Expandable to 800 universal analogue channels - 300 Geotechnical channels (with CEM20's attached to a DT85G)
• 8 digital input/output channels
• 12 counter inputs (4 high speed) and 2 phase encoders
• Calculated measurements
• SDI-12 (multiple networks)
• 2 serial 'smart sensor' ports
• Modbus for SCADA connection
• Memory of approximately 10 million data points
• FTP for automatic data transfer
• Web Interface

Analogue inputs supported

• Thermistors
• Thermocouples
• PT100/PT1000
• Voltage
• Current
• Resistance
• Frequency
• Vibrating wire sensors (Iclinometer/Extensometer/Piezometer/Pressure cell/ Crack meter/Tilt meter)
• Bridge connections (Strain gauges/Load cells)

Key Capabilities

• Create complex schedules of logging rates, triggers and alarm outputs
• Scale and view readings in real time on the integral display or on a PC running Delogger or Excel
• Display readings in preferred engineering units e.g. Hz, Bar, Pascals, Nm etc.
• Select logging rates
• Derive calculated (virtual) channels from real input channels using mathematical functions
• Concurrently sample channels at different sample speeds
• Measure recordings from vibrating wire sensors such as Iclinometer, Extensometer, Piezometer, Pressure cell, Crack meter and Tilt meter

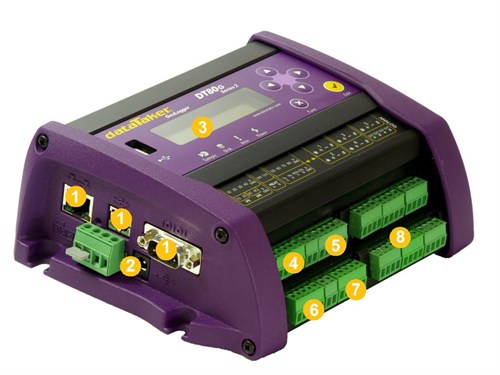

DataTaker DT8x系列工程勘察数据记录仪的技术参数

1. USB, Ethernet and RS232 connectivity for quick and easy PC and remote communication and networking.
2. Power supply - external DC power supply.
3. Convenient 2 line x 16 character backlit LCD for easy access to readings and set-up information
4. 4 digital input/output or low speed counter channels
5. 4 digital input/output/low speed counter channels or SDI-12 connections for muiltiple networks
6. 4 high speed counters or 2 phase encoders
7. RS232/422/485 generic serial sensor port
8. 5 to 15 universal analogue inputs for recording temperature, current, voltage, resistance and vibrating wire

DataTaker DT8x系列工程勘察数据记录仪的机型

DataTaker DT80G

The low cost, low power dataTaker DT80G is extremely versatile and easy to configure for communications, data capture and data analysis. View the data in real time or store up to 5 million data points. Data storage and retrieval can be achieved via USB memory stick, FTP, cell phone, Modbus for SCADA, Ethernet or Web.

The dataTaker DT80G has 5 analog channels capable of measuring up to 5 vibrating wire strain gauges with thermistors or 15 vibrating wire strain gauges without thermistors.

• 5 Four wire Isolated/10 Two wire Isolated/15 Two wire common reference
• With 5 x CEM20's connected 100 Four wire Isolated/200 Two wire Isolated/300 Two wire common reference

DataTaker DT85G

The low cost, low power dataTaker DT85G is extremely versatile and easy to configure for communications, data capture and data analysis. View the data in real time or store up to 10 million data points. Data storage and retrieval can be achieved via USB memory stick, FTP, cell phone, Modbus for SCADA, Ethernet or Web.

The dataTaker DT85G has 16 analog channels capable of measuring up to 16 vibrating wire strain gauges with thermistors or 48 vibrating wire strain gauges without thermistors.

• 16 Four wire Isolated/32 Two wire Isolated/48 Two wire common reference
• With 15 x CEM20's connected 300 Four wire Isolated/600 Two wire Isolated/800 Two wire common reference

DataTaker DT85GM

The dataTaker DT85GM is a robust, stand alone, ultra low power data logger with an integrated 2G/3G modem designed for the geotechnical and construction industries.

The dataTaker DT85GM has 16 analog channels capable of measuring up to 16 vibrating wire strain gauges with thermistors or 48 vibrating wire strain gauges without thermistors.

• 16 Four wire Isolated/32 Two wire Isolated/48 Two wire common reference
• With 15 x CEM20's connected 300 Four wire Isolated/600 Two wire Isolated/800 Two wire common reference

DataTaker DT8x系列工程勘察数据记录仪的附件

CEM20

The channel capacity of the DT80 range of loggers can be increased by using the Channel Expansion Module (CEM20). Each CEM20 connects 20 universal data logging channels to the DT80 range of data loggers.

A CEM20 connects to one analogue channel of the data logger. This can expand the total channel capacity of the DT80 to 300 analogue inputs (common reference) and the DT85 to an incredible 900 analogue inputs (common reference). Incorporating the same dual isolation technology as the DT80 range data loggers each channel of the CEM20 can be used for two isolated inputs or three common reference inputs

dEX Logger Software

dEX datalogger software is an intuitive graphical interface that allows you to configure your data logger, view real-time data in mimics, trend charts or tables and retrieve your historical data for analysis.

dEX comes pre-installed on every logger in the DT80 range. The software loads in your web browser so there is no need to install cumbersome applications on your computer. Being browser-based, dEX will work on all major operating systems including Windows, Mac and Linux.
