颜色管理软件(Color Mate 5)
|
| |
 |
| Color Mate has a cooperative software with all kinds of instruments which is useful for analyzing and managing the measurement data. It is possible not only to display the data of measurement, spectroscopic curve, Lab graph, Yxy graph, color deviation criterion chart, trend graph and spectral data, but also to caluculate standard variation, maximum value, minimum value and average value without depending on commercial-release software. |
|
颜色管理软件(Color Mate 5)的特点
|
| |
 |

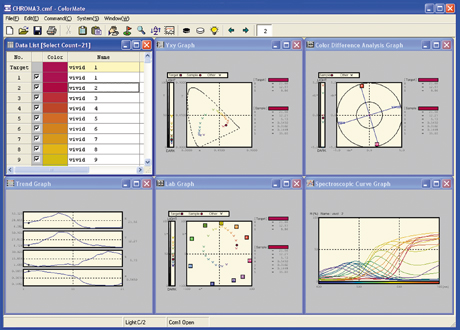

Versatile display |
| |
It is possible to display a list of data, spectroscopic curve graph, Lab graph, Yxy graph, color deviation criterion chart, trend graph, spectral reflectance values, and numerical data, etc. |
|
Data compiling using a list of data |
| |
It is possible to calculate standard deviation, maximum value, and mean value without using a spreadsheet software. |
|
Text file |
| |
Converted text file can be used in a spreadsheet software, which will give you an advantageous effect on your own data analysis. |
|
Data judgement function |
| |
A difference between measured values and reference values can be judged whether it is within the allowed range of tolerance or not. It can be done by ΔL*a*b*E*, ΔLabE, or ΔL*u*v*. |
|
颜色管理软件(Color Mate 5)的技术参数
|
| |
| Display/print |
List of data, spectroscopic curve graph*, Lab graph, Yxy graph, color deviation criterion chart, trend graph, spectral data* (reflectance, absorbance, K / S), and data. |
| Color system |
XYZ, xyz, L*a*b*, Hunter Lab, L*u*v*, L*C*h* (ab),
L*C*h* (uv), Munsell HVC, whiteness, yellowness,
ΔXYZ, Δxyz, ΔL*a*b*E*, ΔHunter LabE, ΔC*H* (ab),
ΔC*H* (uv), ΔECMC, ΔEFMC-2, ΔE*94,
whiteness difference, yellowness difference,
metamerism, density CMYK, NC# grade, etc. |
| Observation Condition |
• Light source : A, B, C, D50, D55, D65, D75, F2, F6, F7, F8, F10, F11, F12
• Field of view : 2º, 10º |
| Number of data |
500 data pieces and 1 reference data piece can be stored in one file. |
| Others |
Data Searching, Data sorting, Averaging mesurement, Automatic measurement. |
|
| *Those marked cannot be used by a tristimulus (XYZ) type color meter. |
|
颜色管理软件(Color Mate 5)的使用环境
|
| |
| OS |
Windows 98, ME, 2000, XP, Vista |
| Computer |
CPU : Pentium 300MHz or more is recommended.
Memory : 128MB or more is recommended.
Hard disk drive : 10MB of available space at least
CD-ROM drive : A drive that can read CD-ROM is necessary.
Display : 800 x 600 or more, 64000 color or more
Interface : Built-in serial port is necessary. |
|
|
